DJE RECYCLING SYSTEMS. SPECIALIST SUPPLIERS.TAYLOR 4 WHEEL GALVANISED STEEL METAL BINS: 46 BUILD VARIANTS, UN APPROVED CLINICAL WASTE BINS, TRADE WASTE BINS, BOTTLE RECYCLING BINS, GENERAL WASTE BINS, FOOD WASTE RECYCLING BINS, CHAMBERLAIN WASTE BINS, DOMESTIC WASTE BINS, GREEN WASTE RECYCLING  BINS, PAPER RECYCLING BINS, PLASTIC RECYCLING BINS, WEEE BIN, DUO SPLIT BIN, DROP FRONT or DROP BACK PANEL BINS, HIGH-SPEED TOWING BINS, INTERNAL FORK POCKETS, EXTERNAL FORK POCKETS, FOOT OPERATED LID OPTION, TAYLOR GALVANISED STEEL 4 WHEEL BINS, TRADE WASTE, RECYCLING BINS, DURAFLEX LIDS, TRADE LIDS, HIGH DOME RECYCLING FLAP LIDS, 2 APERTURE BOTTLE RECYCLING LIDS,3 LID LOCK OPTIONS, STANDARD HANDLES, DANISH HANDLES,200mm STEEL CENTRED BOLT ON CASTORS,4 OPTIONS, TELEPHONE:01709 730341 :Email:info@djerecyclingsystems.com:

«»
4 METAL 1 770 TRADE BIN
4 METAL 2 770 RECYCLING BIN
4 METAL 3 770 BOTTLE BIN
8 METAL 3 770 DROP FRONT
9 METAL 3 770 DROP BACK

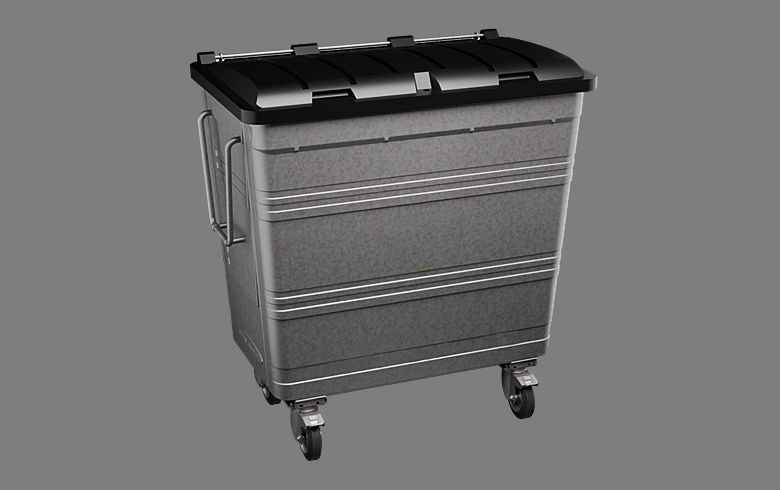

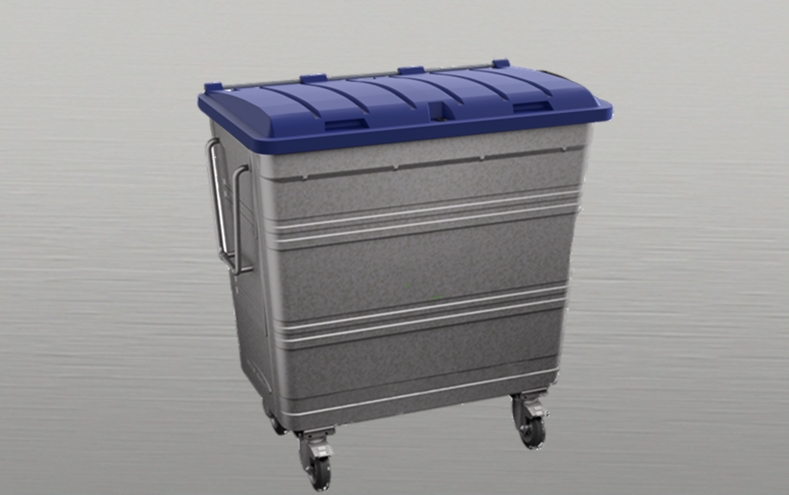

Taylor Mk2 770 Trade The Taylor Mk2 770 offers the perfect medium-sized solution for your waste containment needs in a compact footprint.
The 770-litre waste container is fully EN840 certified ensuring superb quality and safety

Taylor Mk2 770L: 770 Litre Trade Bin, Galvanised Steel Shell, Internally seams welded, The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is Manufactured from high-grade UV-stabilised polyethylene. With Standard Flat Trade Lid, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors foot operated, Danish Side Handles for easy Manoeuvrability in confined bin storage areas

  • Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.
  • The container can be powder-coated option using polyester powder, which is baked and cured in a controlled oven process providing a layer of protection against corrosion, scratches/chipping and fading, being one of the most long-lasting superior paint finishes, and colour-durable quality available in 12 standard colours
  • The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
  • The top frame is a complete welded tube, not split or open bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying
  • Container Bin Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminum mould for a superior finish with 12 Standard Colour Options.
  • Container Bin Lid Options
  • Standard Trade Lid
  • 2 Aperture Bottle Brush Lid
  • Recycling Flap Lid
  • Bolt-on Castor Options for easy replacement
  • Standard 200mm Steel Centred Castors
  • Heavy Duty 200m Castors
  • 200mm High-Speed Towing Castors
  • None Marking 200mm Castors


Taylor Mk2 770L Specification And Build Variants.

All four castors are 200mm steel-centered rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release)

All four castors are 200mm  Steel centered wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centered rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for an easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Also available with Castors Options

Heavy Duty 20mm Casters: Mainly used with bins fitted with heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.

Non-marking casters are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have none, marking floor Vinyl, Epoxy, and Laminate Floor covering.

Continental Towing containers are fully adapted and built with a heavy-duty reinforced base heavy-duty Power castors and a removable tow link system allowing up to 4 wheeled containers to be moved at a time subject to bin size and materials, ground conditions, and material weights.

Heavy Duty Power Towing Castors  2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with heavy duty base, including bolt-on towing hitch and eye.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container that is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container and no more than 4 containers are towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice.

Available with either a drop front or drop back panel
Continental Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an essential requirement within retail and manufacturing environments or easy emptying mainly used by charity shops,

Advantages Powder Coating: Taylor Mk2 770L Bin,
The container can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process Providing a layer of protection against corrosion, scratches/chipping and fading, Being one of the most long-lasting superior paint finishes, and colour-durable quality finish.

DuraFlex Taylor Mk2 Trade Lid


Dimensions Duraflex Taylor-MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 770 litre bin 770 litre bin. L: 737mm x W: 1237mm x H: 81mm With : 7 Ribs For Optimal Strength

Taylor DuraFlex Trade Lid Dimensions

Lids are Rotary-molded double-skin plastic with a minimum weight of 5.0 kilos manufactured in an aluminum mould for a superior finish with 12 Standard Colour Options.

770L Standard Trade Lid

The innovative rotary moulded, double-skinned lid is waterproof and extra strong. The lid lock plug can be removed for easy post-fitting of a lid lock.

Suitable for Trade waste, General waste, Black bag waste and. None recyclable materials

Bespoke Logos Can Be Applied To Any Bin showing what can be correctly recycled
Logo Options

Effective use of a logo alongside an eye-catching paint scheme is a key aspect in the design of your bins and can convey a powerful brand image or message.

Container Bin use. Personalise your containers with a complete range of Wrap logos or by adding bespoke logos,

For Further Information on the 770 Litre Trade Bin: Please Phone DJE At 01709-730341 Or Via the Contact Form


The 770L Litre Further Build and Finish Options

DIN Lift Points, Central Locking Castors, External Fork Pockets, Bin Embossing,

Dimensions Taylor Mk2 770L Trade Bin

Continental 770L Build Variants and Similar Size Bins- All Images are Linked Showing Full Bin Specifications


Bin Compliances:

  • Double tank method as dictated by European Standard BS EN 840
  • Quality Control Certification to BS EN ISO 9001:2000
  • Bin comply in full with European Standard BS EN 840
  • Certification to Environmental Standard BS EN ISO 14001
  • Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
  • Hot-dip galvanised to meet BS EN 1461: 2009
  • Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
  • Galvanised steel body with internal fully welded seams
