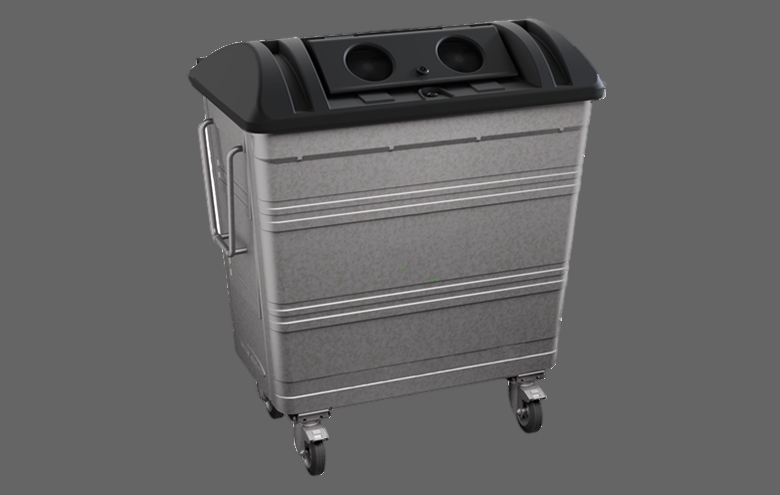

Taylor Mk2 770 litre bin glass bottles and plastic bottles recycling bin comes standard with a heavy-duty base and 2 aperture bush lid, suitable for glass and plastic bottles, ideal for Hospitality, Restaurants, Pubs, Hotels, and Shopping Centres.

Standard Build: 770 Litres Galvanised. Steel Bottle Recycling Bin Fitted with a High Dome 2 Aperture Brush Lid, suitable for recycling Both Glass and Plastic Bottles With Internally Welded Seams, Welded On a Comb Bar, and Danish Side Handles.EN840 compliant, internally seam-welded Hot dip galvanised body Welded comb bar, X 4 200 mm. Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side side-braked castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £405.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Manufacture to Delivery.

6 Standard Build Options and Bin Finishes:
Heavy Duty 200mm X4 Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
3 Lid Options & apertures,  Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Suitable For Glass and Plastic Bottles Recycling, High dome Recycling Flap Lid, Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics,
Hinged Drop Front Panel Suitable for Materials Storage. Hinged Drop-Back Panel Suitable for General Waste.




Images MK2 770L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1370mm
Depth 790mm
Width 1290mm
S.W.L 308Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors, 2 Front Foot Operated Locking Brake Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

Taylor Mk2 770L: 770 Litre Bottle Recycling Bin, Galvanised Steel Shell, Internally seams welded. The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex High Dome Lid: Manufactured from high-grade UV-stabilised polyethene. With Duraflex High Dome Recycling Bush Lid, x 2  Apertures  560 mm diameter., Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors are foot operated, Danish Side Handles for easy Manoeuvrability in confined bin storage areas.

• Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

• The container can be powder-coated using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading, being one of the longest-lasting, superior paint finishes, and colour-durable quality available in 12 standard colours

• The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
• The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.
• The 2 Aperture Bottle Recycling Brush Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminium mould for a superior finish, with 12 Standard Colour Options.

• Available with bolt-on Castor Options for easy replacement
• Standard 200mm Steel Centred Castors
• Heavy Duty 200m Castors
• 200mm High-Speed Towing Castors
• None Marking 200mm Castors

200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and bolted on for an easy replacement. Two-foot-operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Advantages of Powder Coating: Continental Bin,

The Mk2 770 container can be powder-coated using polyester powder, which is baked and cured in a controlled oven process. Providing a layer of protection against corrosion, scratches/chipping and fading, it is one of the longest-lasting, superior paint finishes and has a colour-durable quality finish.

Duraflex Taylor 770Mk2 Bottle Recycling 2 Aperture Lid is manufactured from made from high-grade UV-stabilised polyethylene, which gives the same stability as heavier metal lids

A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape.

The lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public

Dimensions Duraflex Taylor: ML0770RM-BSA Recycling lid with brushes To fit Taylor 770 Ltr containers L: 738mm x W: 1239mm x H: 162mm x 2 175mm Brush Diameter: High Dome and Deep Ribbing Provides Exceptional Strength

DuraFlex 770 Bottle Recycling Lid Dimensions

Available in a range of 12 standard colours:

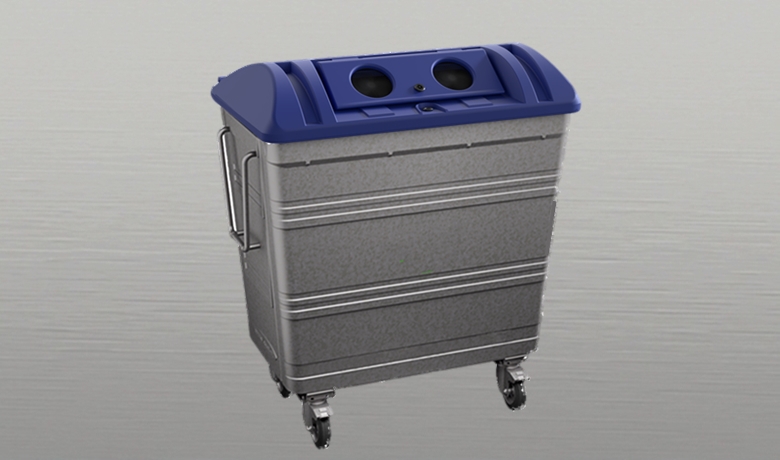

A two-aperture brush entry port lid is ideal for recycling glass, cans, and plastic bottles.

Lid Lock Options

Bespoke Logos Can Be Applied To Any Bin, showing what can be correctly recycled

Logo Options

For Further Information on the 770 Litre Bottle Recycling Bin: Please Phone DJE at 01709-730341, Or Via the Contact Form

The 770 Litre Further Build and Finish Options

DIN Lift Points, Central Locking Castors, External Fork Pockets, Bin Embossing, Danish Handles,
Bin Dimensions

Dimensions Taylor 770 Mk2 Trade Bin

Bin Compliance:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Body steel, all joints fully welded, with all internal body seams continuously welded. All steel parts are galvanised to meet BS 729.
• Galvanised steel body with internal fully welded seams
