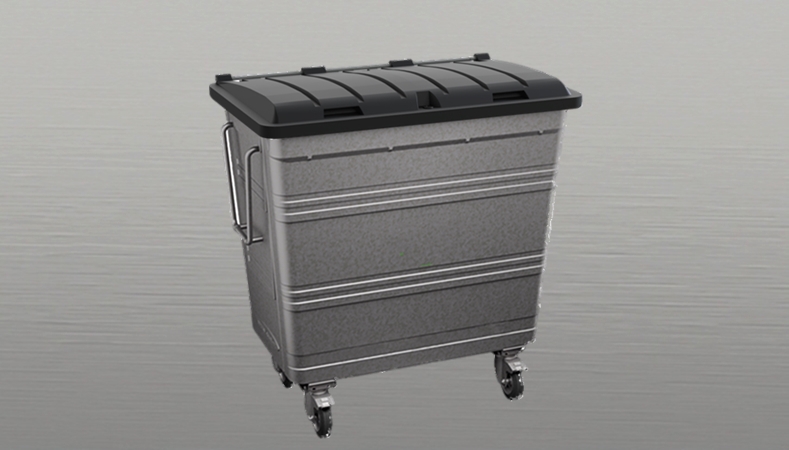

Taylor Mk2 770L: 770 Litre Trade Bin, Galvanised Steel Shell, Internally seams welded, The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is Manufactured from high-grade UV-stabilised polyethylene. With Standard Flat Trade Lid, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors foot operated, Danish Side Handles for easy Manoeuvrability in confined bin storage areas

770L Waste Disposal 4-Wheel Metal Bin
Taylor Mk2 770 litre, Waste Disposal Steel Bin Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Image MK2 770L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1370mm
Depth 790mm
Width 1290mm
S.W.L 308Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors, Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

770L 4 Wheel Galvanised Steel Bin Specification and Build Finish Options

Highly Durable Galvanised Steel Body

• 770L Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.
• The container can be powder-coated option using polyester powder, which is baked and cured in a controlled oven process providing a layer of protection against corrosion, scratches/chipping and fading, being one of the most long-lasting superior paint finishes, and colour-durable quality available in 12 standard colours
• The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
• The top frame is a complete welded tube, not split or open bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying
• Container Bin Lids are rotary-moulded double skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminium mould for a superior finish. 12 Standard Colour Options.
• Container Bin Lid Options
• Standard Trade Lid
• 2 Aperture Bottle Brush Lid
• Recycling Flap Lid
• Bolt-on770 Castor Options for easy replacement
• Standard 200mm Steel Centred Castors
• Heavy Duty 200m Castors
• 200mm High Speed Towing Castors
• None Marking 200mm Castors

All four castors are 200mm steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release)

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Also available with Castors Options

Heavy Duty 20mm Casters: Mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.

Non-marking casters are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.

Continental Towing containers are fully adapted and built with a heavy-duty reinforced base and heavy-duty Power castors and a removable tow link system allowing up to 4 wheeled containers to be moved at a time, subject to bin size and materials, ground conditions and material weights.

Heavy Duty Power Towing Castors  2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container which is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container and no more than 4 containers are towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice.

Available with either a drop front or drop-back panel
Mk2 Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an essential requirement within retail and manufacturing environments or easy emptying.

Advantages of Powder Coating: Taylor Mk2 770 Bin,
The container is an available powder-coated option using polyester powder, which is baked and cured in a controlled oven process. Providing a layer of protection against corrosion, scratches/chipping, and fading, being one of the longest-lasting superior paint finishes, and colour-durable quality finishes.


Different Lid Types & Apertures suitable for recyclingLids are rotary-moulded double-skin plastic with a minimum weight of 5.0 kilos manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.

Standard Trade Lid

Dimensions Duraflex Taylor-MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 770 litre bin 770 litre bin. L: 737mm x W: 1237mm x H: 81mm With: 7 Ribs For Optimal Strength

Recycling Flap Lid
Dimensions Duraflex Taylor: ML0770RM-FLA Recycling lid with plastic flap To fit Taylor 770 Ltr container L: 738mm x W:1239mm x H:162mm Plastic Flap Aperture Size: W:500mm H:150mm High: Dome and Deep Ribbing Provides Exceptional Strength

Designed for paper or plastics recycling. The flap-opening lid is available in a wide choice of colours.
Fitted with Flap Lid-Suitable for Recycling: Mixed Dry Recyclables Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard  corrugated cardboard, cereal boxes and card, Metal cans  clean, empty drinks cans and food tins Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine  tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials, Single-use Plastics,

Bottle recycling, fitted with 2 Aperture Brush Lid
Dimensions Duraflex Taylor: ML0770RM-BSA Recycling lid with brushes To fit Taylor 770 Ltr containers L: 738mm x W: 1239mm x H: 162mm x 2 175mm Brush Diameter: High Dome and Deep Ribbing Provides Exceptional Strength

This two-aperture brush entry port lid is ideal for glass, cans, and plastic bottle recycling. Available in a wide choice of colours
Bespoke Logos Can Be Applied To Any Bin, showing what can be correctly recycled

Effective use of a logo alongside an eye-catching paint scheme is a key aspect in the design of your bins and can convey a powerful brand image or message regarding
Container Bin use. Personalise your containers with a complete range of Wrap logos or by adding bespoke logos.



Dimensions Taylor Mk2 770 Trade Bin

Mk2 770L  Trade Bin: Please Phone DJE at 01709-730341 Or Via the Contact Form
Taylor Continental 770L Build Variants. All 770 Images are linked, showing Bin Specifications.
770L and 820L are The Same Bin Depth, 785mm




The Mk2 770 Litre Build and Finish Options
DIN Lift Points, Central Locking Castors,  Bin Embossing, Standard Danish Handles, Heavy Duty Base

Bin Compliance:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
• Galvanised steel body with internal fully welded seams
