The Taylor 500L  Trade Waste Bin is the smallest in the range, is ideal for indoor and outdoor waste storage needs, and can fit through a standard-sized doorway due to its small footprint and compact design.

Standard Build: 500 Litres Galvanised. Steel General Waste Bin With Internally Welded Seams, Welded On Comb Bar, EN840 compliant, Internally seam welded Hot dip galvanised body, Welded comb bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors, X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £450.00 Excluding VAT. 500 L will fit through any standard-width doorway. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch

Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
4 Lid types & apertures,  Duraflex Black Trade Lid,  High Dome 2 Aperture Bottle Recycling Lid,  High dome Recycling Flap Lid,  Foot Operated Lid:   Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, BESPOKE Options: Heavy duty version ( Suitable For Food Waste Recycling, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 160mm or 200mm  Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Hands Free Foot Operated Duraflex Back Lid Opening.



500L Continental Galvanised Steel with internally welded seams ensures robust protection in the harshest of environments. It protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Taylor 500L: 500 Litre Capacity Trade Bin, Galvanised Steel Shell, Internally seams welded, lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is manufactured from high-grade UV-stabilised Polyethylene. Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x foot operated braked castors, foot operated, Standard Side Handles,

Images 500L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1095mm
Depth 720mm
Width 1290mm
S.W.L 200Kg
Standard Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 160mm Castors
2 Rear Swivel Castors: 2 Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

Steel-centred castor wheels manufactured with needle bearings, grease, and rubber optimised for performance (we don’t offer plastic-centred castors)

Internally welded seams prevent internal corrosion, whilst the hard-wearing galvanised steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.

The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

500 Litre trade waste steel body, Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

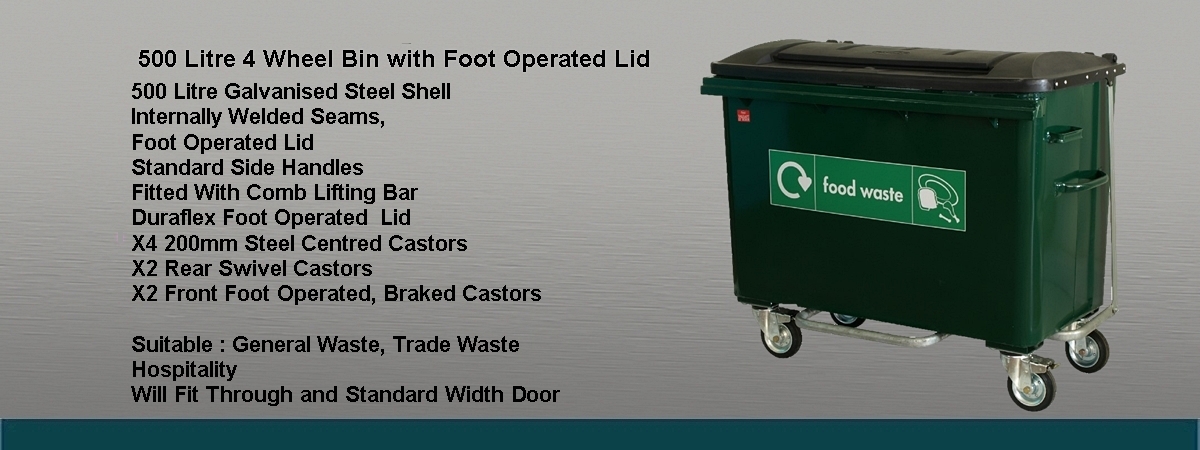

Foot-Operated Bin Lid Opening
500L is available with a foot-operated Standard Lid. Specifically adapted for situations in which bulky items can limit the use of both hands for opening the lid, the foot-operated system is perfect for black-bagged waste and general waste. This simple, yet effective, foot-operated pedal bin system at the base of the container takes the slightest effort to raise the lid, therefore freeing up your arms and reducing the risk of injury if carrying awkward loads and boxes. Ideal for bin stores and bin sheds

All four castors are 160 mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are foot-pressed to lock, foot press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Advantages of Powder Coating: Taylor Continental Bin
The container 500L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping, and fading. Bin Colour Options:
Trade Lid

Dimension Duraflex Taylor - MA4927 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 500 litre bins .L: 673mm x W: 1233mm x H: 81mm With: 7 Ribs For Optimal Strength

Taylor-500L lid is up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.
The lightweight construction of DuraFlex lids, made from high-grade UV-stabilised polyethylene, gives the same stability as heavier metal lids.
A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape.

Lid Colour Option:

The Taylor 500L Trade Waste bin can be supplied without a lid if used indoors for manufacturing and recycling applications.

Build Options
DIN points, Custom embossing, Drain plug options, External fork pockets, Heavy Duty Base, Central locking castors, Sound deadening, Lid Locks,

For further information on the 500 Litre Trade Waste Bin, please phone DJE at 01709-730341 or via the contact form.

Continental 500L Standard Bin Dimensions

Maximum Payload SWL should not Exceed 200 Kgs

Continental 500L Build Variants all Images are Linked, Showing The Full Bin Specification
