The Taylor 820 litre is ideal for your medium to large collections where space is limited. With the same footprint as our 770, the sump base creates extra storage capacity whilst retaining the same superb towing capability as the smaller model.

Standard Build: 820 Litres Galvanised. Steel General Waste Recycling Bin With Internally Welded Seams, Welded On Comb Bar, EN840 Side Handles. EN840 compliant, internally seam-welded hot-dip galvanised body. Welded comb bar, X 4 200mm Steel Centred Bolt castors For Easy Replacement, X 2 foot-operated braked Castors, X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £459.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch

Suitable for: Distribution Centres, Industrial Applications, Manufacturing, Factory, Warehouses, Shops, Shopping Centres, Hotels, Catering, Takeaways, Housing Associations, Hospitals, Surgeries, Garages, Airports, Ferries, Schools and Colleges, to name but a few so please phone DJE Recycling Bins on 01709-730341 so we can discuss your requirements or Via The Contact Us Link

Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
3 Lid Options  & apertures,  Duraflex Black Trade Lid,  High Dome 2 Aperture Bottle Recycling Lid,  High Dome Recycling Flap Lid:  Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 200mm Heavy Duty Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics,  Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop Back Suitable for General Waste.

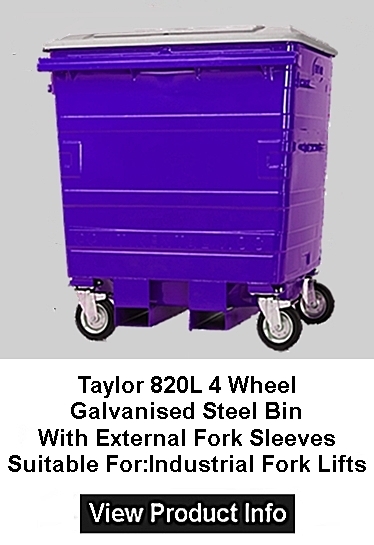

External Fork Sleeves



820 Litre Continental Galvanised Steel with internally welded seams ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

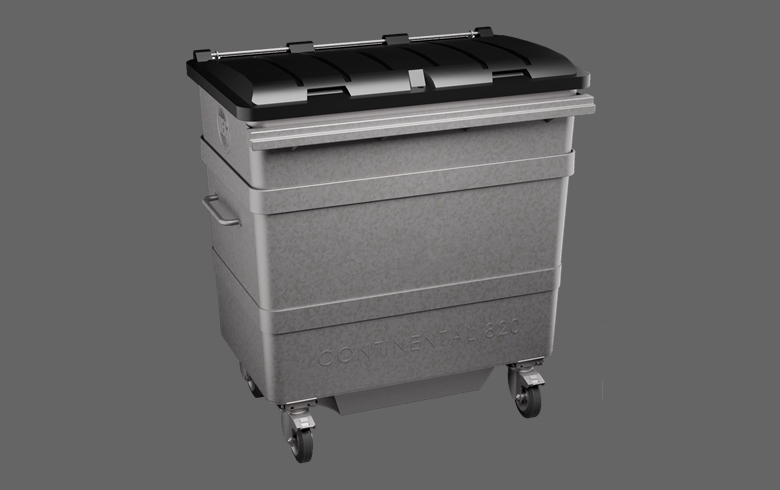

Image 820L Trade Bin For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1306mm
Depth 785mm
Width 1250mm
S.W.L 328Kg
Standard Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors, Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

Highly Durable Galvanised Steel Body

Steel-centred castor wheels manufactured with needle bearings, grease and rubber optimised for performance (we don’t offer plastic-centred castors)

Fully internally welded seams prevent internal corrosion, whilst the hard-wearing galvanised steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.

The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

820 Litre trade waste steel body, Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

Available with either a Drop Front or Drop Back Panel
Continental Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an important requirement within retail and manufacturing environments and are easy to empty. Please note *Drop front panel bin isn’t fitted with a comb but can be fitted with weld-on DIN lift points.

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Caster Options:

Heavy Duty 200mm Casters: Mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.200 mm Heavy duty Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kg static load rating, 1500 kg dynamic load rating.

Non-marking castors are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.

Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye. 200 mm Heavy duty High-Speed Directional Towing Castors Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container which is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container, and no more than 4 containers are towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options, and technical advice

Advantages of Powder Coating: Taylor Bin
The container 820L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process providing a layer of protection against corrosion, scratches/chipping and fading.

Duraflex Lids

Dimensions Duraflex Taylor -MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 820 litre bin 820 litre bin. L: 737mm x W: 1237mm x H: 81mm

Taylor-DuraFlex 820L lid is up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.

The lightweight construction of DuraFlex lids, made from high-grade UV-stabilised polyethylene, gives the same stability as heavier metal lids.

A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape.

Lid Colour Option:

The 820L  bin lid can be supplied without a lid if used indoors for manufacturing and recycling applications.

Build Options
DIN points, Custom embossing, Drain plug options, External fork pockets, Different handle options, Standard and Danish, Heavy Duty Base, Central locking castors, Lid Locks,

For Further Information on the 820 Litre Trade Waste Bin: Please Phone DJE On 01709-730341 Or Via the Contact Form.

Continental 820L Standard Bin Dimensions

Maximum Payload SWL should not Exceed 328 Kgs
