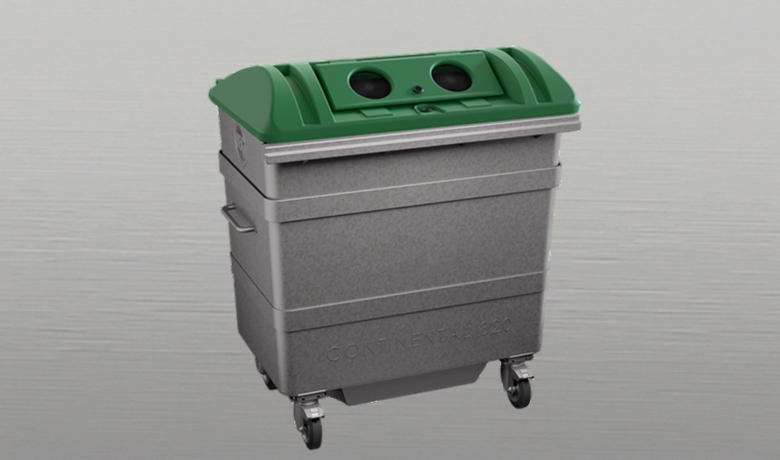

Continental 820 litre bin glass bottles and plastic bottles recycling bin comes standard with a heavy-duty base and 2 aperture bush lid, suitable for glass and plastic bottles, suitable for Hospitality, Restaurants, Pubs, Hotels, and Shopping Centres.

Standard Build: 820 Litres Galvanised. Steel Bottle Recycling Bin Fitted with High Dome 2 Aperture Brush Lid, suitable for recycling Both Glass and Plastic Bottles With Internally Welded Seams, Welded On Comb Bar, and Standard Side Handles.EN840 compliant, internally seam-welded hot-dip galvanised body. Welded comb bar, X 4 200 mm Steel Centred Bolt On Castors For Easy Replacement, X 2. Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £497.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Manufacture to Delivery.

7 Standard Build Options and Bin Finishes:
Heavy Duty 200mm X4 Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
3 Lid Option types & apertures,  Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Suitable For Glass and Plastic Bottles Recycling, High dome Recycling Flap Lid,:   Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Plug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics,
Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop Back Panel Suitable For General Waste.
External Fork Sleeves




Taylor 820L: 820 Litre Capacity Bottle Recycling Container/ Bin, Galvanised Steel Shell, Internally seams welded. The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex High Dome Recycling Bush Lid, x 2  Apertures  560 mm diameter. Manufactured from high-grade UV-stabilised Polyethylene, Taylor 200mm Steel Centred castors, 2 x Back / Rear swivel Castors, 2 x foot-operated braked castors, foot operated, Standard Side Handles

Image 820L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1370mm
Depth 780mm
Width 1250mm
S.W.L 328Kg
Standard Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors, Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

820L Bottle Recycling Bin Specification and Build Finish Options

Galvanised steel body, hot-dipped galvanised steel, and fully internally welded seams ensure robust protection in the harshest environments and protect the container from internal corrosion due to residual waste caught in exposed corners.

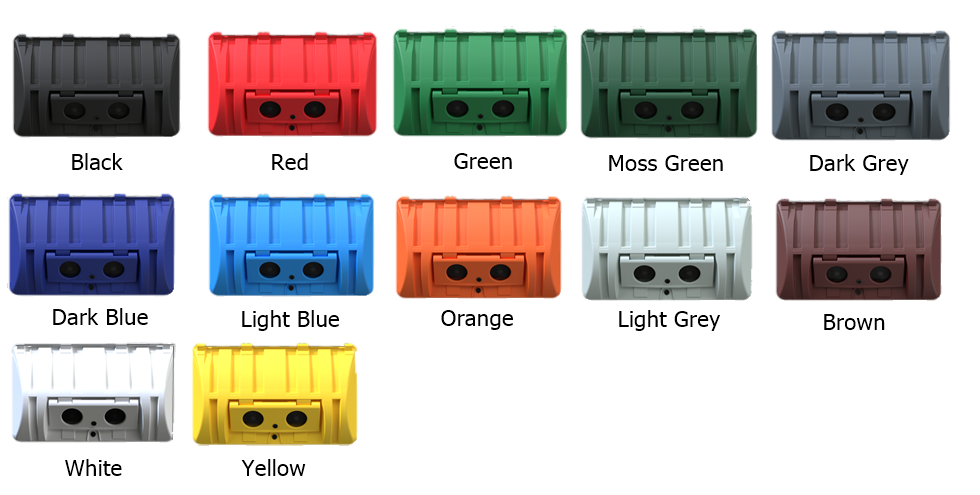

• The container can be powder-coated using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading, being one of the longest-lasting, superior paint finishes, and colour-durable quality available in 12 standard colours

• The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
• The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.
• The 2 Aperture Bottle Recycling Brush Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminium mould for a superior finish, with 12 Standard Colour Options.

• Available with bolt-on Castor Options for easy replacement
• Standard 200mm Steel Centred Castors
• Heavy Duty 200m Castors
• 200mm High-Speed Towing Castors
• None Marking 200mm Castors

Dimensions Duraflex Taylor: ML0770RM-BSA Recycling lid with brushes To fit Taylor 820 Ltr containers L: 738mm x W: 1239mm x 2 175mm Brush Diameter: High Dome and Deep Ribbing Provides Exceptional Strength

DuraFlex lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.
DuraFlex lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged.
The lightweight construction of DuraFlex lids, manufactured from high-grade UV-stabilised polyethylene, gives the same stability as heavier metal lids.
A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape.

Taylor DuraFlex 820L 2 Aperture Brush Lid Dimensions

Taylor 820 litre, Steel Bin Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Taylor 820L Bottle Recycling Bin Specification and Build Options

Highly Durable Galvanised Steel Body
Steel-centred castor wheels manufactured with needle bearings, grease and rubber optimised for performance (we don’t offer plastic-centred castors)
Fully internally welded seams prevent internal corrosion, whilst the hard-wearing galvanised steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.
The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
Internally welded seams stop water penetration, preventing corrosion.

200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance. Steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are foot-press to lock, press to release), are bolted on for easy replacement. It is two-foot-operated, with trailing braking wheels at the front and two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Please contact us on 01709 730341 for more information on “Towing Guidelines” or Castor Options and technical advice.

Advantages of Powder Coating: Continental Bin,

The 820L container can be powder-coated using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading, being one of the long-lasting, superior paint finishes, and has colour-durable quality finishes.

Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilos, manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.

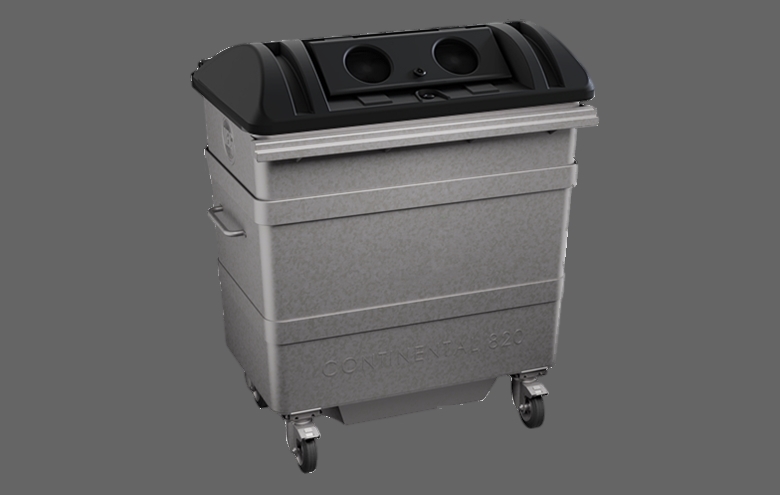

This two-aperture brush entry port lid is ideal for glass, cans and plastic bottle recycling.

Bespoke Logos Can Be Applied To Any Bin, showing what can be correctly recycled

Logo Options

For Further Information on the 820 Litre Bottle Recycling Bin: Please Phone DJE at 01709-730341, Or Via the Contact Form

The 820 Litre Further Build and Finish Options

DIN Lift Points, Central Locking Castors, External Fork Pockets, Bin Embossing,

Taylor 820L Bin Dimensions

Bin Compliance:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Body steel, all joints fully welded, with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
• Galvanised steel body with internal fully welded seams
